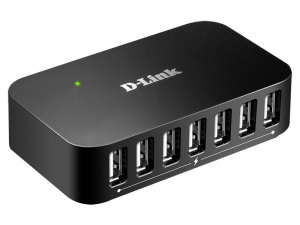

D-Link [DUB-H7]

The D-Link QuickMedia DUB-H7 2.0 is a Hi-Speed USB 2.0 7-port hub that is backward compatible with USB 1.0 and 1.1. The DUB-H7 allows connection of up to seven additional USB peripherals or devices to your USB ready PC or Mac.

Designed to provide quick and easy access, the D-Link DUB-H7 provides seven Type A USB downstream ports for connecting USB peripherals, devices, or other USB hubs. A single Type B upstream port connects the DUB-H7 to the host computer or another USB hub, enabling up to 127 devices to be connected by cascading multiple hubs.

Configured directly by the operating system, the D-Link DUB-H7 operates seamlessly with both Microsoft Windows^TM and Apple Macintosh^TM Operating Systems.

Diagnostic LEDs provide port status for each port and power status. The DUB-H7 includes an Installation Guide, a 6-foot Hi-Speed USB 2.0 certified A to B cable, and power adapter.

The DUB-H7 is backward compatible with USB 1.0 and USB 1.1, allowing you to connect all your existing USB peripherals and integrates easily in your existing network at home or in the office.

Technical Specifications

Standards USB Specification Version 2.0 USB Specification Version 1.1 USB Specification Version 1.0 OHCI (Open Host Controller Interface) EHCI (Enhanced Host Controller Interface)    Operating Systems Mac OS X 10.1 and above with USB Support Microsoft Windows XP, ME, 2000, 98SE with USB Support     Supplied Current      Self-Powered Mode: 500mA per port     Ports One upstream USB Type B Port Seven downstream USB Type A Ports     Dimensions      99.6 mm x 59.5 mm x 25.7 mm     Connectivity      Up to 127 devices by cascading multiple hubs     LEDs Self Powered Port Status     Operating Temperature     0°C to 40°C     Storage Temperature      0 to 95%, non-condensing     Humidity       5% to 95%, non-condensing     Power Requirements      Self Powered -12.6W, 3 A @ 5 VDC     Power supply       Output 5V 3A     Compliances      CE, FCC Class B, VCCI, UL     Warranty       1 Year
