▪ AOC
|
|
|
 |
Monitors: AOC
|
|

Panel size: 23.6'
Screen Ratio: 16:9
Response Time (Typical): 1ms
Recommended Resolution: 1920*1080 @ 60 Hz
Contrast Ratio: 1000:1 (Typical) 20,000,000:1(DCR)
Brightness (Typical): 250 cd/m²
Display Color: 16.7M
Viewing Angel (H/V): 170°/160°(CR >10)
Viewable Image Size (mm): 598
Display Area: 521.28 (H)x293.22 (V)mm
Pixel Pitch ... more (mm): 0.3114(H)×0.3114 (V)mm
Scan Frequency (H/V): Vertical refresh rate 50Hz to 76 Hz
Horizontal frequency 30kHz to 83kHz
Pixel Frequency: 148.5MHz
Input Signal: Analog, DVI & HDMI
Input Connector: Analog, DVI & HDMI
Built-in Speaker: 2Wx2
HDCP Compatible: YES
Input Power: 00-240VAC, 50/60Hz,1.5A
Power Supply: Built- in
Operation Mode (W): 38
Stand by Mode (W): <0.5W
Wall- Mount: VESA 100x100mm
Cabinet Color: Black
Phys. (W×H×D) mm: 551.4(W)x338.9(H)x53.4(D)mm
Package Box (W×H×D) mm: 551.4(W)x400.4(H)x221(D)mm
Weight (Net/ Gross)(kg): 3.68/5.23
Plug & Play: DDC2B/CI
User Control: Source/Auto/Exit,Clear Vision/<, Volume/>, Menu/Enter, Power
OSD Languages: 16 languages
Safety Regulation: Windows 8, FCC, CB/CE, EPA 6.0, BSMI
Spec: http://www.aocmonitorap.com/v2015/au/product_display.php?id=5222  [BRAND] AOC[MPN#] E2470SWH/75
|

28" AOC M2870VQ 28" MVA LED, Full HD, DP, HDMI, DVI, VGA, 4ms, 20M DCR, Speakers, VESA 100x 100 Multi-domain vertical alignment (MVA) 8-Bit Colour and fast response time with wide viewing angle. Panel Size 28" Screen Ratio 16:09 Response Time (Typical) 4ms Recommended Resolution 1920x1080 Contrast Ratio 3,000:1 (Typical) 20,000,000:1 (DCR) ... more Brightness (Typical) 300 cd/m² Display Color 16.7M Viewing Angle (H/V) 176/176 Viewable Image Size (mm) 711 Display Area (mm) 620.9 (H) × 336.31 (V) Pixel Pitch (mm) 0.32 (H) × 0.32 (V) Scan Frequency (H/V) 30-83KHz/50-76Hz Pixel Frequency 148.5MHz Input Signal Analog & DVI & HDMI & DisplayPort Input Connectors D-Sub 15-pin & DVI 24pin & HDMI & DP Built-in Speakers YES HDCP Compatible YES Input Power 100-240VAC, 50/60Hz Power Supply Build-in Operatiog Pode (W) 41 Standby Pode (W) <0.5 Wall Mount VESA 100x100mm Cabinet Color Black Phys. (W×H×D) mm 642.4x449.3x241.9 Package Box (W×H×D) mm 730x500x145 Plug & Play VESA DDC2B™ & DDC2B/CI User Control Source/Auto/Exit, Left/Clear Vision, Right/Volume, Menu/Enter, Power OSD Languages 16 Safety Regulation CCC, CB, CE, FCC, C-Tick N26268, cTUVus, EPA, TUV-GS, ISO9241-307, Windows 8, CECPERGO, EU RoHS Doc, BSMI, VCCI, J-Moss, e-Standby, CU, TCO 6, KCC, KC  [BRAND] AOC[MPN#] M2870VQ
|

19.5" AOC e2070Swn (LCD, TN+Film , Wide, LED, 16:9, 1600×900, 1000:1, 200 cd/m2, 5ms, 170°/160°, D-Sub, Black)
19.5" AOC e2070Swn (LCD, TN+Film , Wide, LED, 16:9, 1600×900, 1000:1, 200 cd/m2, 5ms, 170°/160°, D-Sub, Black) * 19.5" Widescreen 1366x768p resolution * 5ms Response, 20,000,000:1 Contrast (DCR) * Brightness: 25 cd/m2 * Wall-mount ready (100x100mm) *Ultra Low Power Consumption *LED Panel: Hg Free * 3 Years Nationwide Pickup & Return ... more Warranty Packing Pallets 19.5" W FOB Factory L&T Panel size 19.5" W 170/160 (CR=10) Screen Ratio 16:9 Response Time (Typical) 5ms Recommonded Resolution 1600×900@60Hz Contrast Ratio 600:1 (Typical),20000000:1 (DCR) Brghtness (Typical) 200 cd/m² Display Color 16.7M Viewing Angel (H/V) 90/50 Viewable Image Size (mm) 494.11 Display Area 433.92(H)×263.34 (V)mm Pixel Pitch (mm) 0.2712 Scan Frequency (H/V) 30-83KHz/ 50-76Hz Pixel Frequency 140MHz Input Signal Analog Input Connector 15-pin D-Sub Cable D-sub Built-in Speaker N/A HDCP Compatible N/A Input Power 100-240VAC, 50/60Hz Power Supply Build- in Operation Mode (W) 18W Stand by Mode (W) <0.5W Wall- Mount VESA 100x100mm Cabinet Color Black Phys. (W×H×D) mm 464.63×346.35×156 Package Box (W×H×D) mm 519×359×107 Weight (Net/ Gross)(Kg) 2.11/3.21 Tilt -3°~10° Pivot N/A Height Ajust N/A Swivel N/A Kensington lock YES Temperature Operating 0°C ~+40°C Temperature Non-Operating -25°C - 55°C Humidity Operating 10% to 85% Humiditiy Non-Operating 5% to 93% Altitude Operating 12,000 feet Altitude Non-Operating 40,000 feet Plug & Play VESA DDC2B™ & DDC2B/CI User Control Power/Auto Usb plug N/A OSD Languages by I-menu 13 languages Safety Regulation cCSAus,FCC,EPA 6.0,Windows 8,C-Tick,CH ROHS,CEL,CCC,ISO 9241-307,EPEAT,CECP Special Features 1. Low Power with LED PANEL,2. Hair-Line Texture Design,3. High DCR 20m:1,4. E-saver/I-menu/Screen Plus software  [BRAND] AOC[MPN#] E2070SWN
|
Suitable for monitors up to 24" with 100mm VESA Mount. Height Adjustable as well as Pivot, Swivel & Tilt. 12 Month Warranty [BRAND] AOC[MPN#] HA22
|
Practical Good Looks. The AOC 70 Series is the ultimate sensible business monitor: outstanding value, efficient energy consumption, classic styling and excellent display technology. [BRAND] AOC[MPN#] E2770SH/75
|
23.8in AG241QG NVIDIA G-SYNC 2560X1440 1MS 165HZ DP HDMI1.4 20MILLION CONTRAST FLICKER FREE SPEAKER HAS USB HUB/CHARGER [BRAND] AOC[MPN#] AG241QG/75
|

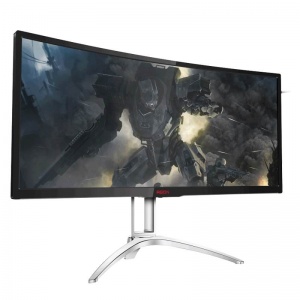

The AOC AG352QCX gaming monitor features a 35' screen, AMD FreeSync, 200Hz refresh rate and an array of other functions. Specially designed for gaming, it's the ultimate monitor for bringing out the best of any player.
Model Name AG352QCX
LCD Panel Type VA
Panel Size 35'
Effective Viewing Area 819.84(H)x345.87(V)mm
Aspect ... more Ratio 21:9
Maximum Resolution 2560 x 1080 @ 200Hz
Smart Response Time 4ms (GtG)
Brightness (typical) 300 cd/m²
Contrast Ratio (typical) 2000:1
Dynamic Contrast Ratio 80M:1
Viewing angle 178°(H)/178°(V)
Display Colours 16.7 Million
Scanning Frequency D-Sub:30~160KHz (H); 50-146Hz(V)
HDMI2.0/DP: 30~240KHz (H);48-202Hz(V)
Signal Input DP 1.2 / HDMI 2.0 / DVI Dual-Link/D-Sub
USB 2 x USB 3.0 with one fast charging
Audio In/Out Audio Line In, Headset (earphone combined with microphone), Microphone In, Microphone Out
Built-in Speakers 5W
Ergonomic 5.5° ±1° ~ 28° ±1.5°
Power Power Source 100- 240V 50/60Hz
Power Consumption
On: 45W
Standby: 0.5W
Off: 0.5W
Power Supply 20VDC 2.25A
Dimensions Product with stand 847W x 587H x266.45Dmm
Packaging 980W*300D*527H
Weight 11.8 kg wo/packaging; 15.3 kg w/packaging
Detailed spec: http://agon.aocmonitorap.com/au/product_ag352qcx.php  [BRAND] AOC[MPN#] AG352QCX/75
|
Maximize your advantage with the AOC G2460VQ6 Monitor. By synchronizing the monitor's refresh rate with the GPU's frame rate in real time, FreeSync technology eliminates screen tearing and stuttering, which lets you claim the win you deserve. [BRAND] AOC[MPN#] G2460VQ6/75
|
31.5" 4K (3840 x 2160 @ 60Hz) VA Panel 4ms (GTG)
VGA (D-Sub), DVI-D, HDMI, DisplayPort
3W Speakers & USB 3.0 Hub [BRAND] AOC[MPN#] U3277PWQU/75
|
|
*All new monitors are 3-year manufacture warranty |
|
|
